Dynamic Multipoint VPN – Dual hub

Cisco Mar 06, 2010

In a previous article, I exposed how to setup a basic DMVPN network with one hub router in a central location and several spoke routers negotiating a dynamically built IPSec protected GRE tunnel. I also explained the central site should be secured by deploying two hub routers… Here is one solution among others using DMVPN and OSPF. (Should you need another solution you can always contact our professional services)

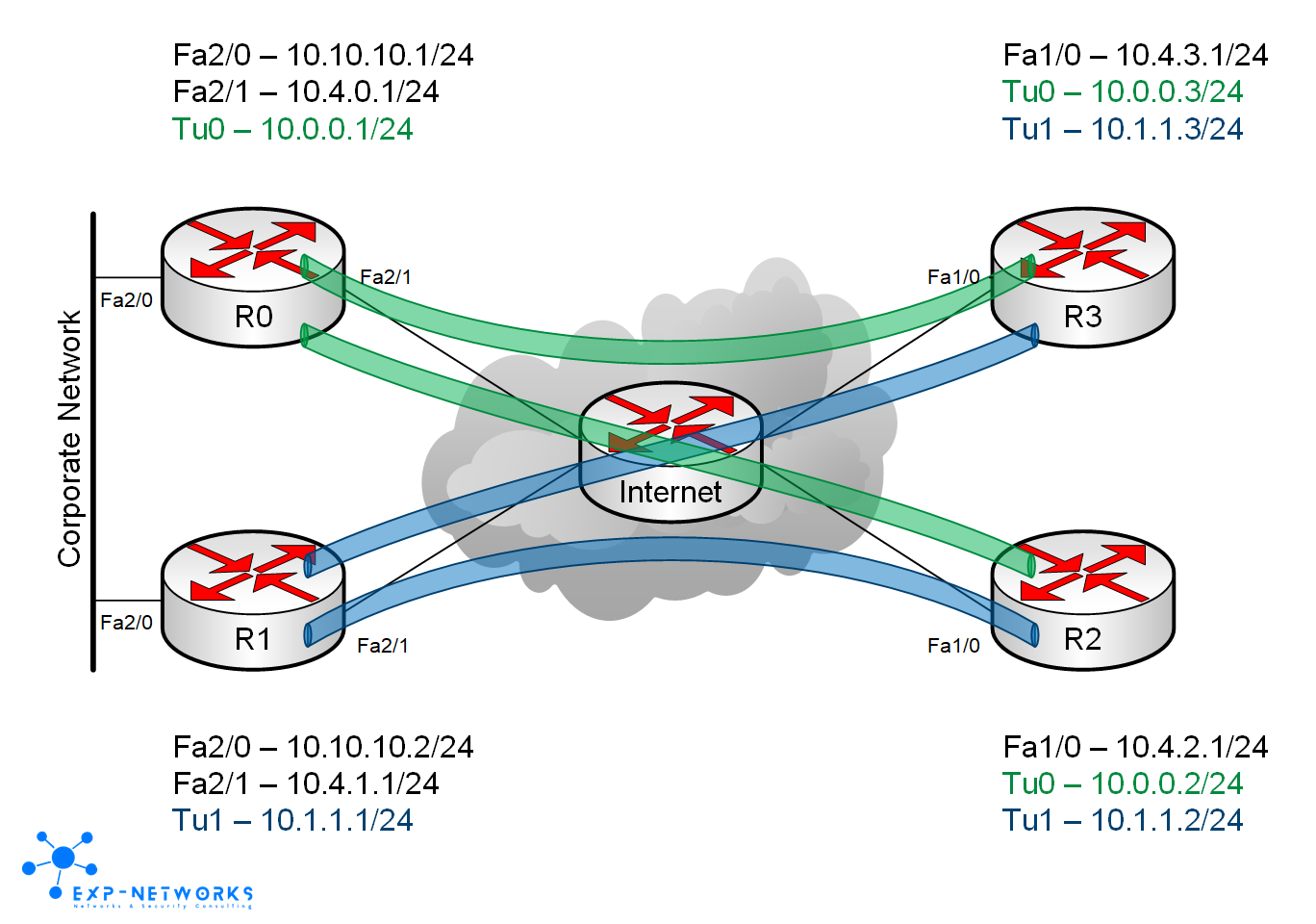

In this scenario, the spoke routers will have two GRE tunnels, one ending on each hub routers.

First we configure the hub routers with mGRE interfaces and OSPF.

The tunnel interfaces use point-to-point OSPF network type by default, we will need to reconfigure them with  NBMA OSPF network type as we will have several spoke routers ending their tunnel on them. We will also set the OSPF costs in order to have R0 acting as the preferred hub router and R1 as the backup hub router.

Hub router R0′s config

interface Tunnel0
 ip address 10.0.0.1 255.255.255.0
 no ip redirects
 ip nhrp network-id 1
 ip ospf network non-broadcast
 ip ospf cost 10
 tunnel source FastEthernet2/1
 tunnel mode gre multipoint
 tunnel key 1
!
interface FastEthernet2/0
 ip address 10.10.10.1 255.255.255.0
!
interface FastEthernet2/1
 ip address 10.4.0.1 255.255.255.0
!
router ospf 1
 log-adjacency-changes
 network 10.0.0.0 0.0.0.255 area 10
 network 10.10.10.0 0.0.0.255 area 10
!
ip route 0.0.0.0 0.0.0.0 10.4.0.2

Hub router R0′s config

interface Tunnel1
 ip address 10.1.1.1 255.255.255.0
 no ip redirects
 ip nhrp network-id 1
 ip ospf network non-broadcast
 ip ospf cost 100
 tunnel source FastEthernet2/1
 tunnel mode gre multipoint
 tunnel key 1
!
interface FastEthernet2/0
 ip address 10.10.10.2 255.255.255.0
!
interface FastEthernet2/1
 ip address 10.4.1.1 255.255.255.0
!
router ospf 1
 log-adjacency-changes
 network 10.0.0.0 0.0.0.255 area 10
 network 10.10.10.0 0.0.0.255 area 10
!
ip route 0.0.0.0 0.0.0.0 10.4.1.2

Then we can start to add spoke routers. The spoke routers will use point-to-point GRE (as we don’t want spoke-to-spoke direct communication) with NBMA OSPF network type in order to be compatible with the hub routers’ settings. We also need to define the neighbors as we’re on an NBMA network. I’ve chosen to do that on the spoke routers as ì don’t want to have to touch the hub routers config when new spoke routers are added.

Spoke router R2′s config

interface Loopback0
 ip address 2.2.2.2 255.255.255.255
!
interface Tunnel0
 ip address 10.0.0.2 255.255.255.0
 ip nhrp map 10.0.0.1 10.4.0.1
 ip nhrp network-id 1
 ip nhrp nhs 10.0.0.1
 ip ospf network non-broadcast
 ip ospf cost 10
 ip ospf priority 0
 tunnel source FastEthernet1/0
 tunnel destination 10.4.0.1
 tunnel key 1
!
interface Tunnel1
 ip address 10.1.1.2 255.255.255.0
 ip nhrp map 10.1.1.1 10.4.1.1
 ip nhrp network-id 1
 ip nhrp nhs 10.1.1.1
 ip ospf network non-broadcast
 ip ospf cost 100
 ip ospf priority 0
 tunnel source FastEthernet1/0
 tunnel destination 10.4.1.1
 tunnel key 1
!
interface FastEthernet1/0
 ip address 10.4.2.1 255.255.255.0
!
router ospf 1
 log-adjacency-changes
 network 2.2.2.2 0.0.0.0 area 10
 network 10.0.0.0 0.0.0.255 area 10
 network 10.1.1.0 0.0.0.255 area 10
 neighbor 10.0.0.1
 neighbor 10.1.1.1
!
ip route 0.0.0.0 0.0.0.0 10.4.2.2

Same config is applied on spoke router R3, only the IP change.

To check the GRE tunnels are operational, we only have to ping the tunnels’ internal IP from one router to the others three.

From spoke router R2 :

R2#ping 10.1.1.1

Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.1.1.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 8/8/8 ms
R2#ping 10.1.1.3

Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.1.1.3, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 16/17/24 ms
R2#ping 10.0.0.1

Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.0.0.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 8/11/24 ms
R2#ping 10.0.0.3

Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.0.0.3, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 16/20/32 ms

If we check the NHRP entries on the hubs R0 or R1, we can see the two entries have been learned dynamically and the public IP used by the remote routers.

R1#sh ip nhrp
10.1.1.2/32 via 10.1.1.2, Tunnel1 created 02:08:37, expire 01:38:57
  Type: dynamic, Flags: authoritative unique registered used
  NBMA address: 10.4.2.1
10.1.1.3/32 via 10.1.1.3, Tunnel1 created 02:08:36, expire 01:38:57
  Type: dynamic, Flags: authoritative unique registered used
  NBMA address: 10.4.3.1

R0#sh ip nhrp
10.0.0.2/32 via 10.0.0.2, Tunnel0 created 02:15:15, expire 01:53:44
  Type: dynamic, Flags: authoritative unique registered
  NBMA address: 10.4.2.1
10.0.0.3/32 via 10.0.0.3, Tunnel0 created 02:11:04, expire 01:53:44
  Type: dynamic, Flags: authoritative unique registered
  NBMA address: 10.4.3.1

Now, check OSPF is doing what we want. First we check the ospf neighbors on spoke router R2

R2#sh ip ospf neighbor

Neighbor ID     Pri   State           Dead Time   Address        Interface
10.10.10.2        1   FULL/DR         00:01:54    10.1.1.1       Tunnel1
10.10.10.1        1   FULL/DR         00:01:55    10.0.0.1       Tunnel0

Then we can check corporate subnet 10.10.10.0/24 and other spokes (here R3′s Loopback 3.3.3.3) are reachable via the primary hub router R0.

R2#sh ip route ospf
     3.0.0.0/32 is subnetted, 1 subnets
O       3.3.3.3 [110/11] via 10.0.0.3, 00:42:46, Tunnel0
     10.0.0.0/24 is subnetted, 4 subnets
O       10.10.10.0 [110/11] via 10.0.0.1, 00:42:46, Tunnel0

On the hub routers we can check the spoke routers are always reached via R0.

R0#sh ip route ospf
     2.0.0.0/32 is subnetted, 1 subnets
O       2.2.2.2 [110/11] via 10.0.0.2, 00:49:41, Tunnel0
     3.0.0.0/32 is subnetted, 1 subnets
O       3.3.3.3 [110/11] via 10.0.0.3, 00:49:41, Tunnel0
     10.0.0.0/24 is subnetted, 4 subnets
O       10.1.1.0 [110/101] via 10.10.10.2, 00:49:41, FastEthernet2/0

R1#sh ip route ospf
     2.0.0.0/32 is subnetted, 1 subnets
O       2.2.2.2 [110/12] via 10.10.10.1, 00:50:52, FastEthernet2/0
     3.0.0.0/32 is subnetted, 1 subnets
O       3.3.3.3 [110/12] via 10.10.10.1, 00:50:52, FastEthernet2/0
     10.0.0.0/24 is subnetted, 4 subnets
O       10.0.0.0 [110/11] via 10.10.10.1, 00:50:52, FastEthernet2/0

Now that we have IP connectivity, we can enable IPSec exactly as we did last time.

crypto isakmp policy 10
authentication pre-share
crypto isakmp key cisco123 address 0.0.0.0 0.0.0.0
!
crypto ipsec transform-set mySet esp-aes esp-sha-hmac
!
crypto ipsec profile myDMVPN
set security-association lifetime seconds 120
set transform-set mySet
set pfs group2

interface Tunnel0
tunnel protection ipsec profile myDMVPN

interface Tunnel1
tunnel protection ipsec profile myDMVPN

That’s all folks! Now we have a DMVPN setup with redundant hub routers…
